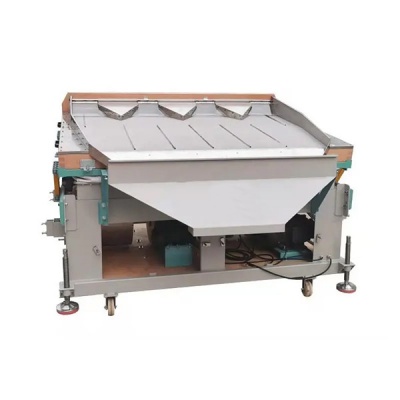

QSC-10 De-stoner
QSC-10 De-stoner:
QSC Blowing Style De-stoner can separate stone, clod from grain seeds by adjusting wind pressure, amplitude and other parameter.
The stone with large gravity lowers to the bottom and moves from low to high close to the screen surface; the material with small gravity suspends on the surface and moves from high to low to achieve the separation. With internal fans, no need to install wind net system, The Fans and vibration system is equipped with different motors, noninterference adjustment; vibration part motor with a transducer, which using different frequency for small particles of material (millet), medium materials (mung bean, soybean), large granular materials (kidney beans, broad beans) to achieve the best good effect to remove stone.
De-stoner technical parameter:
| Name | Model |
Sieve size (mm) |
Power(kw) |
Capacity (T/H) |
Weight(T) |

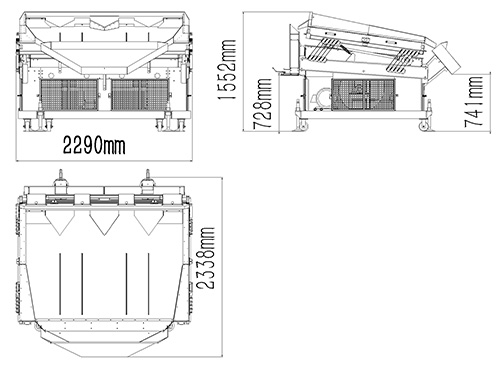

Overall size L x W x H (mm) |
Remark |
| De-stoner | QSC-10 | 2200 x 1530 | 8.6 | 10 | 1.27 | 2300 x 2290 x 1550 | with transducer |
